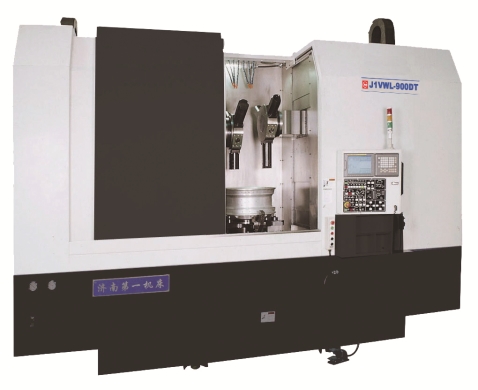

J1VWL-900DT CNC car wheel vertical lathe
View:
The machine tool has obvious advantages such as overall rigidity, high processing precision, large metal removal rate per unit time, good precision retention, high reliability, easy maintenance, and the like, and the application scope is particularly wide. Machine tools can be used as small and medium-sized batches of various types of processing and production, and can also be used together with other equipment.
J1VWL-900/ J1VWL-900DT CNC Vertical Lathe Main Specifications
|
項目Item |
J1VWL-900DT |
J1VWL-900 |
|
最大回轉直徑Max swing over bed |
Φ900 |
|
|
最大切削直徑Max turning diameter |
Φ750（14-28.5吋inch） |
|
|
最大切削高度Max turning height |
350（13吋inch） |
|
|
主軸轉速范圍（r/min）Spindle speed |
25～1800 |
|
|
主軸頭Spindle nose |
A2-11 |
|
|
X/Y/Z軸最大行程Travel of X/Y/Z axis |
X1,X2:-15～+510/Z:550 |
|
|
X/Z軸快速移動（m/min）Rapid traverse rate ofX/Z axis |
16/16 |
|
|
主電機功率（kW）Spindle motor power |
45/55(選擇option60/75) |
37/45 |
|
刀架形式/刀位數Turret type/Numbers of tool |
立式Vertical6+6 |
立式Vertical6 |
|
數控系統CNC system |
FANUC 0i-MF |
|
